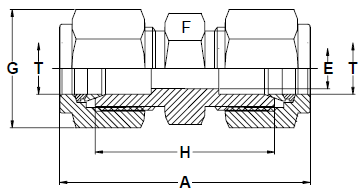

Stainless Steel Compression Unions : |
| |
|
| |
| |
A |
E |
F |
G |
H |
PART NO. |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 3 |
35.3 |
2.4 |
11 |
11 |
22.1 |
D-U3 |
| 6 |
41 |
4.8 |
14 |
14 |
26.2 |
D-U6 |
| 8 |
43.2 |
6.3 |
16 |
16 |
26.2 |
D-U8 |
| 10 |
46.2 |
7.9 |
17 |
19 |
31 |
D-U10 |
| 12 |
51.2 |
9.5 |
22 |
22 |
31 |
D-U12 |
| 14 |
52 |
11.1 |
24 |
25 |
31 |
D-U14 |
| 15 |
52 |
11.9 |
24 |
25 |
31.8 |
D-U15 |
| 16 |
52 |
12.7 |
24 |
25 |
31.8 |
D-U16 |
| 18 |
53.5 |
15.1 |
27 |
30 |
33.3 |
D-U18 |
| 20 |
55 |
15.9 |
30 |
32 |
34.8 |
D-U20 |
| 22 |
55 |
18.3 |
30 |
32 |
34.8 |
D-U22 |
| 25 |
65 |
21.8 |
35 |
38 |
40.4 |
D-U25 |
|
| |
| TUBE OD - T |
A |
E |
F |
G |
H |
PART NO. |
inch |
mm |
mm |
mm |
mm |
mm |
|
| 1/8 |
35.6 |
2.4 |
11 |
11 |
22.4 |
2D-U |
| 1/4 |
40.9 |
4.8 |
14 |
14 |
26.2 |
4D-U |
| 5/16 |
42.9 |
6.3 |
14 |
16 |
28.2 |
5D-U |
| 3/8 |
45 |
7.1 |
16 |
17 |
30.2 |
6D-U |
| 1/2 |
51.3 |
10.4 |
22 |
22 |
31 |
8D-U |
| 5/8 |
52 |
12.7 |
24 |
25 |
31.8 |
10D-U |
| 3/4 |
53.6 |
15.8 |
27 |
28.5 |
33.3 |
12D-U |
| 7/8 |
55.2 |
18.2 |
30 |
32 |
34.8 |
14D-U |
| 1 |
64.8 |
22.3 |
35 |
38 |
40.4 |
16D-U |
|
